Version with bracket for screwing on the engine cover
Application:
3' E46, 08.2002 - 08.2006
318d, Sedan, M47N engine
318d, Touring, M47N engine
318d, Compact, M47N engine
X3 E83, 05.2003 - 07.2006
2.0d, M47N2 engine
X3 E83 LCI, 03.2006 - 08.2010
2.0d, M47N2 engine
Note: There may have been other varieties of EGR valves in the above cars. Please check the EGR valve carefully before purchasing parts.

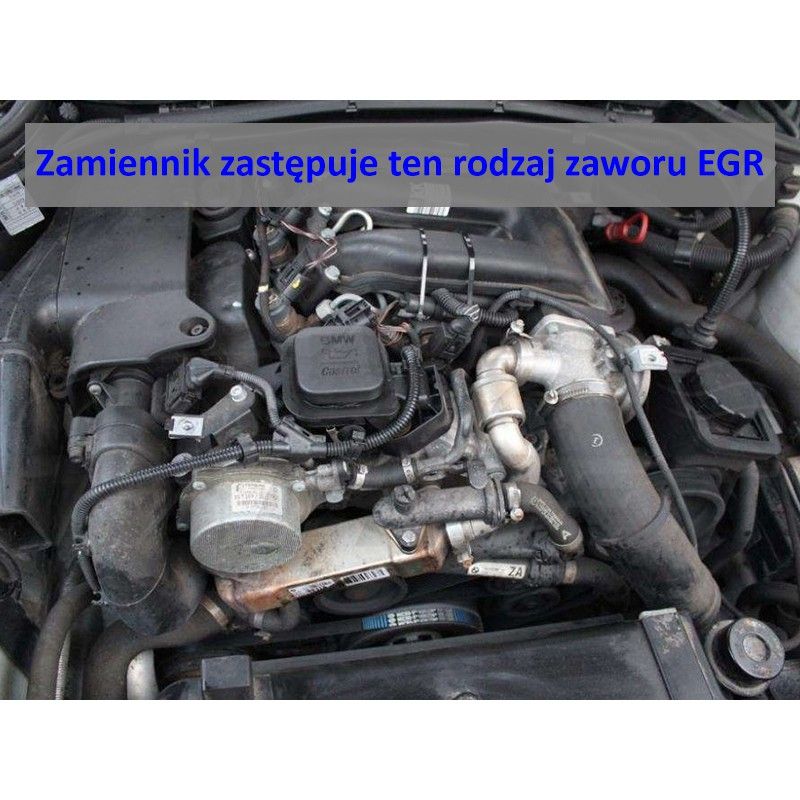

EGR valve part numbers:
Pierburg: 7.28264.06.0
BMW: 11717785452, 11717804378, 11714701242
Exhaust gas cooler part numbers:
11717794245
11717790065

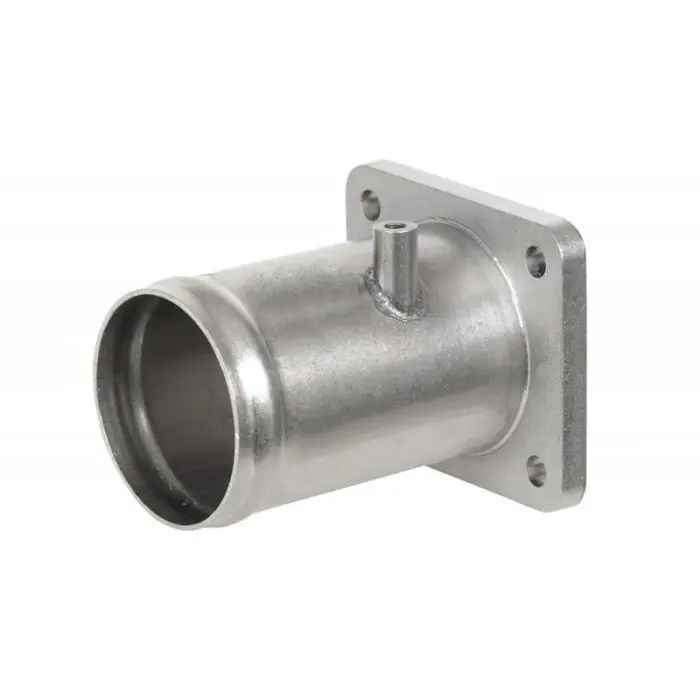

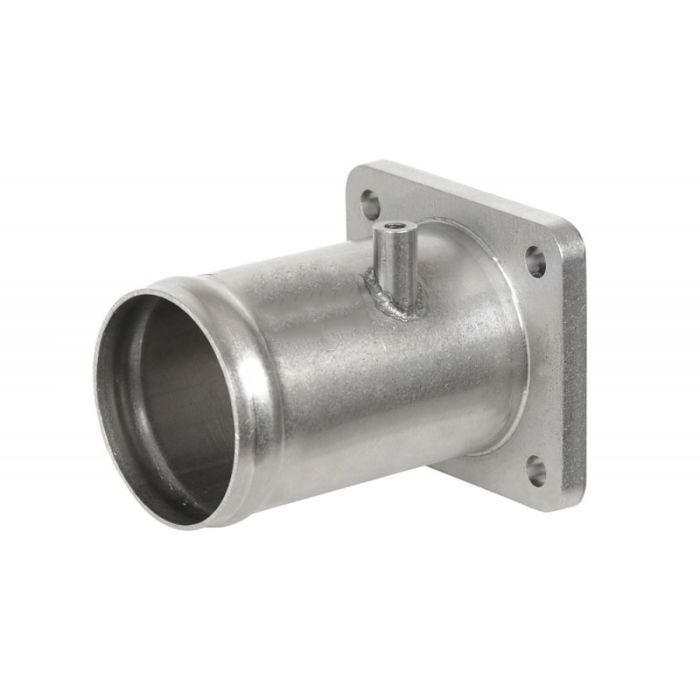

Technical information:
replacement material: acid-resistant steel;
special clamp for acid-resistant steel flanges;
collector cap material: acid-resistant steel;
collector gasket material: Victor Reinz Extreme Plus, resistant to all conditions in the exhaust system;
EGR valve gasket material: Viton, resistant to oil and high and low temperatures;
pipe diameter: 54.0 mm;
total length: 90 mm.
After replacing the defective EGR valve with a replacement, it is necessary to change the software on newer car models so that the engine controller does not report the error.
For off-highway and motorsport use.
| Bauteil: | AGR-Delete-Kit |
|---|---|
| Zulassung: | Ohne Gutachten |
